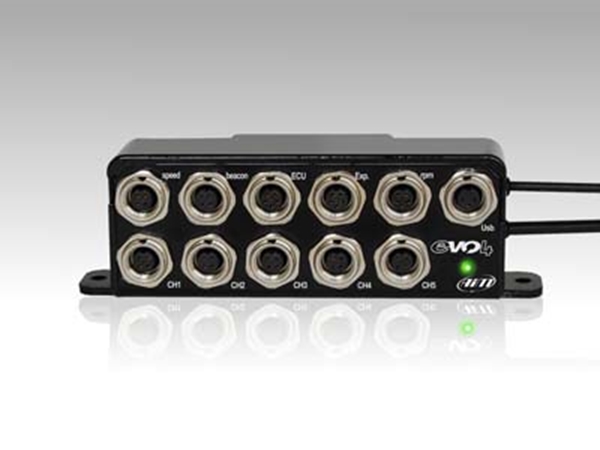

AIM - EVO IV Data Logger with DIsplay

This is the complete kit with all of the sensors, and cables needed for your Spec Miata.
Free shipping
$1,845.00
- +

This kit includes the following for your SpecMiata:

  • AIM Data EVO IV Data Acquisition System with MyChron 3 Display
  • Oil Pressure Sensor and extension cable.
  • Oil Pressure Remote location kit - Miata Specific uses BPT at block and 1/8th NPT to connect to the oil pressure sensor.
  • Water Temp Sensor, extension cable, and water temp fitting to take water temp at the back of the head in the heater core hose.
  • Throttle Position Sensor - Rotary Potentiometer and extension cable.
  • 3 Axis Accelerometer
  • Wheel Speed Sensor, Lap Timer - All handled through the onboard GPS in the EVO IV.

EVO4 is the latest system from AiM. EVO4 is a compact, standalone logger that has GPS and a 3-axis accelerometer built in. While it is great as a portable unit that can be easily moved between vehicles, it also has all the features you would expect for a permanent installation, such as 5 analog channels, 2 speed inputs, CAN ECU and expansion capabilities, and the ability to add external displays.



EVO4 Features:

  • Integrated GPS
  • Integrated 3-axis accelerometer
  • 5 analog input channels
  • RPM input
  • 2 wheelspeed inputs
  • 8MB of non-volatile memory
  • GPS Lap Timing (Capable of using infrared lap beacon, beacon and receiver not included)
  • Sampling rates: digital inputs up to 50 Hz, analog thermocouple up to 100 hz, analog potentiometer up to 1000 Hz
  • CAN/Serial (RS-232) interface to connect to ECUs
  • Compatible with CAN expansion modules such as GPS, SmartyCam, LCU-1 Wideband, Channel/Thermocouple Expansion, and Memory Key
  • Fast USB download to your PC and Race Studio 2 Analysis software

MyChron3 Dash for EVO4 Features:

MyChron3 Dash - Click to Enlarge

  • RPM Graphical Display with configurable scaling
  • (1) Selectable display field for RPM, speed, best lap time or battery voltage
  • (2) Selectable display fields for analog inputs; a button on the display switches to a second page with 2 different measures
  • Last Lap Time
  • 10 LED Shift Lights (green, yellow red)
  • 4 LED Alarms, fully configurable for minimum or maximum alarms





This kit includes the following for your SpecMiata:

  • AIM Data EVO IV Data Acquisition System with MyChron 3 Display
  • Oil Pressure Sensor and extension cable.
  • Oil Pressure Remote location kit - Miata Specific uses BPT at block and 1/8th NPT to connect to the oil pressure sensor.
  • Water Temp Sensor, extension cable, and water temp fitting to take water temp at the back of the head in the heater core hose.
  • Throttle Position Sensor - Rotary Potentiometer and extension cable.
  • 3 Axis Accelerometer
  • Wheel Speed Sensor, Lap Timer - All handled through the onboard GPS in the EVO IV.

EVO4 is the latest system from AiM. EVO4 is a compact, standalone logger that has GPS and a 3-axis accelerometer built in. While it is great as a portable unit that can be easily moved between vehicles, it also has all the features you would expect for a permanent installation, such as 5 analog channels, 2 speed inputs, CAN ECU and expansion capabilities, and the ability to add external displays.



EVO4 Features:

  • Integrated GPS
  • Integrated 3-axis accelerometer
  • 5 analog input channels
  • RPM input
  • 2 wheelspeed inputs
  • 8MB of non-volatile memory
  • GPS Lap Timing (Capable of using infrared lap beacon, beacon and receiver not included)
  • Sampling rates: digital inputs up to 50 Hz, analog thermocouple up to 100 hz, analog potentiometer up to 1000 Hz
  • CAN/Serial (RS-232) interface to connect to ECUs
  • Compatible with CAN expansion modules such as GPS, SmartyCam, LCU-1 Wideband, Channel/Thermocouple Expansion, and Memory Key
  • Fast USB download to your PC and Race Studio 2 Analysis software

MyChron3 Dash for EVO4 Features:

MyChron3 Dash - Click to Enlarge

  • RPM Graphical Display with configurable scaling
  • (1) Selectable display field for RPM, speed, best lap time or battery voltage
  • (2) Selectable display fields for analog inputs; a button on the display switches to a second page with 2 different measures
  • Last Lap Time
  • 10 LED Shift Lights (green, yellow red)
  • 4 LED Alarms, fully configurable for minimum or maximum alarms
