Weld on 16ga stee roll cage bracket to mount to the passenger side seat brace bar where it meets the main hoop for installing fire system pull cables and toggle switch for electronic battery disconnect switches.

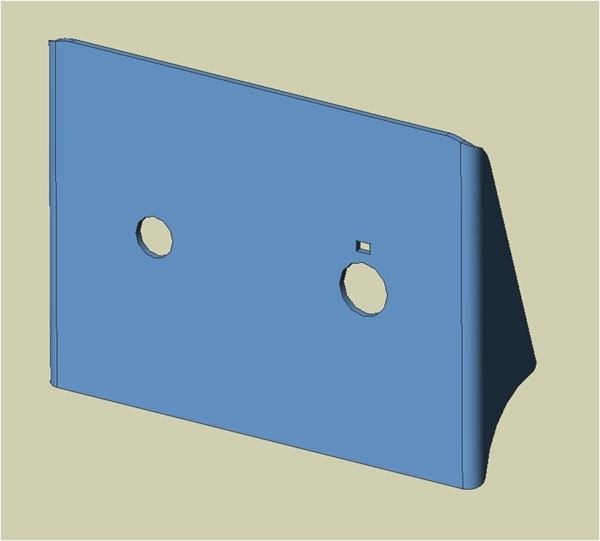

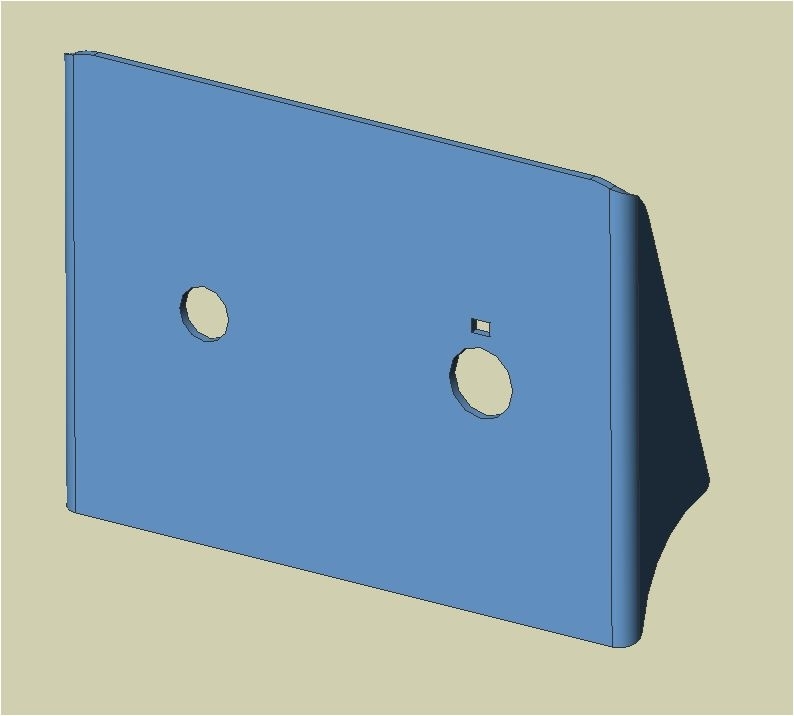

The brackekt has 2 holes in it based on the Lifeline mechanical fire cable pull (.355) and the toggle switches (.460) included with our battery disconnect switch. The toggle switches come with an antii-rotation washer, so we put a small index hole for that washer above the main toggle switch body hole.
The bracket also comes wtih a red sticker with the cutoff symbol as well as On/Off for the toggle switch. Weld on the plate, then put on the sticker.
The bracket is radiused for 1.5" tubing so you can rotate it around the tube to get the desired lay back angle on the cage tube. We have rearward angle on the plate when we install it to keep it protected when we have a passenger seat in the car.
