Our state of the art harness features aluminum adjusters for quick, precise, easy adjustment and release. With the added benefit of lap strap zip adjusters that are integral within the lap strap tongue, making these harness the perfect choice for endurance racing when changing from one driver to another.
These harnesses include high levels of attention to detail such as high contrast pull down loops on both the lap and shoulder adjusters as well as the strategically placed Velcro for communication cables and drinks tubes. Available with both snap hook or bolt-in end fittings.
Featuring a unique buckle mechanism it has been designed for easy, positive latching, this lightweight buckle has been manufactured from high quality aerospace grade materials, to ensure maximum confidence from the driver that the harness is correctly and safely latched in place.
FHR only.

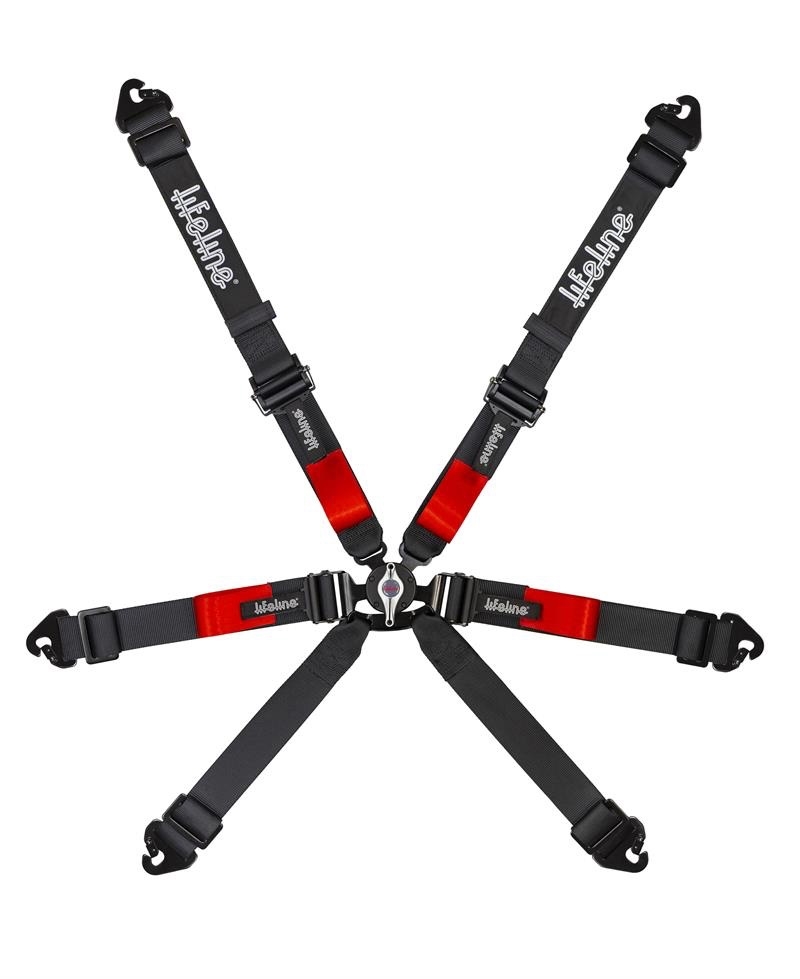

Copse Harness Specification
|
| Shoulder Strap |
Width |
50mm |
| Minimum Length |
1580mm |
| Maximum Length |
1900mm |
| Adjustability |
320mm |
| Adjuster Type |
Lift handle forged aluminium with Lifeline branded pull tabs |
| Lap Strap |
Width |
50mm |
| Minimum Length |
500mm |
| Maximum Length |
1200mm |
| Adjustability |
700mm |
| Adjuster Type |
Zip adjuster integrated into the tongue with Lifeline branded pull tabs |
| Anti-Submarine/Crotch Strap |
Width |
50mm |
| Minimum Length |
250mm |
| Maximum Length |
710mm |
| Adjustability |
No in seat adjustment |
| Adjuster Type |
3 bar slide |
All strap length measurements taken from centerline of the mounting bolts to the mounting hole in the tongue.
All straps have a 3 bar slide for easy adjustment of mounting positions.
All Lifeline racing harnesses can be mounted with their supplied attachements or wrapped using the 3 bar slide.
All straps whose adjsuter is a 3 bar slide cannont be adjusted by the driver while seated.
