This device converts a resistance based fuel sender to a 0-5 Volt signal necessary for use with with almost any data acquisition system that uses industry standard 0-5V sensor input for analog channels.
No more pumping gas in and out to determine the exact fuel level. Using this sensor and your data acquisition system you can determine your fuel level using your data acquisition system. You will need to create a custom sensor for your particular data acquisition system, an easy and straight forward task.
Get rid of the inaccurate and slow responding stock fuel gauge and take advantage of your investment in a data acquisition system. Useful for both track and street driven cars.

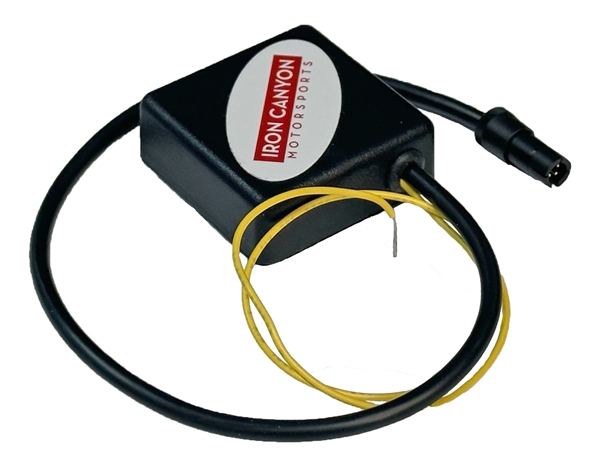

Much more than just a simple voltage divider circuit, a custom circuit board, IC's, and voltage regulators are used to produce the most accurate output possible. Unit is packaged in a durable plastic enclosure approximately 1.5x1.5 inches in size.
Note - these units are designed for Sprint racing. As a result there is a minimum of dampening designed into the ICM sender resulting in a very active gauge reading when the car is in motion due to the fuel slosh that occurs.
The RaceStudio3 application provides real time math channel capability to allow you to add dampening to the fuel sender channel to make the output more usable while the vehicle is in motion. The gauge is very accurate when the vehicle is stopped.
The unit is plug and play for AIM MXL/MXL2/MXS/MXG/MXP/MxM units with the binder interface option. Just connect the extension cable to an analog channel interface and connect the fuel sender input wire to the converter.
