AIM - MXL Pista SpecMiata Kit

This kit includes the following for your SpecMiata

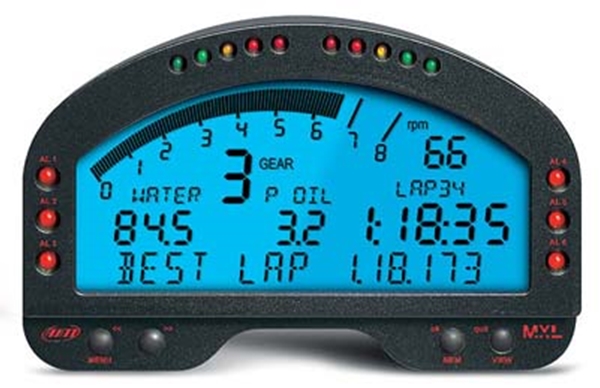

• AIM MXL Pista Data Logger
• Oil Pressure Sensor and extension cable.
• Oil Pressure Remote location kit - Miata Specific uses BPT at block and 1/8th NPT to connect to the oil pressure sensor.
• Water Temp Sensor, extension cable, and water temp fitting to take water temp at the back of the head in the heater core hose.
• Throttle Position Sensor - Rotary Potentiometer and extension cable.
• Lateral G sensor.
• Wheel Speed Sensor and magnets
• Carbon Fiber SpecMiata dash mounting plate.

MXL systems are the next step up from the MyChron3 line. These systems have a larger display that is better suited for use as a complete gauge package, as well as added channel and memory capability. All MXL systems have the following features:

• Wide display with backlight
• RPM Graphical Display with configurable scaling
• Speed display
• Gear number display
• (1) Selectable display field for lap time, forecast lap time, RPM, odometer, time, or battery voltage
• (2) Selectable display fields for analog inputs; always displayed
• (2) Selectable display fields for analog inputs; a button on the display switches to a second page with 2 different measures
• 10 LED shift lights (green, yellow red)
• 6 LED alarms, fully configurable for minimum or maximum alarms
• RPM and wheelspeed inputs
• Infrared or magnetic lap receiver
• Calculated or sampled gear position number
• Total and partial (resettable) odometer and total engine usage time
• CAN/Serial (RS-232) interface to connect to ECUs
• Sampling rates: digital inputs up to 50 Hz, analog thermocouple up to 100 hz, analog potentiometer up to 500 Hz
• Compatible with CAN expansion modules such as GPS, SmartyCam, LCU-1 Wideband, Channel/Thermocouple Expansion, and Memory Key

MXL Pista Features:

• 8 analog input channels
• One speed input
• Internal Lateral G sensor
• 8MB of non-volatile memory
• Fast USB download to your PC and Race Studio 2 Analysis software
